Writing models for AXgen
  AXgen makes no special prerequisites about the model. Though, the UML abstraction layer may represent some limitations as it is not a 1:1 implementation of the UML specification but it reflects those parts of the UML class diagram elements, that are commonly used for code generation. See the API doc for details on the metamodel abstraction layer.
  Of course, the use of AXgen's abstraction layer is not limited to the use for code generation. Use it anywhere you need to access UML metamodel data.
  For information on modelling for OJB, see the AXgen and OJB section.
  Merging models

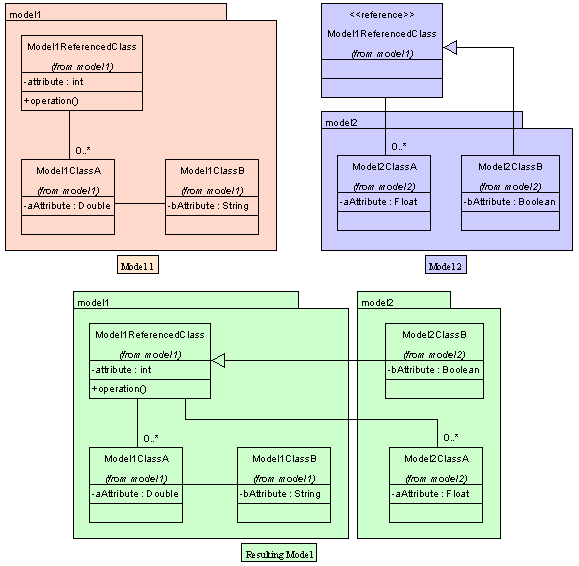

  AXgen's UML abstraction layer can merge models referencing one another automatically resolving references. The figure below shows the general behaviour.
  Merging models
  Just write two separate models (Model 1 and Model 2 in the figure above). Duplicate a type in both models and give it the stereotype <<reference>> (or any other stereotype, in which case you need to configure AXgen to use your own stereotype to resolve references). Do not declare any attributes, operations or any other properties in the duplicated type. AXgen will replace the duplicate by the corresponding real type in the first model. The resulting model will be equivalent to the Resulting Model in the figure above.
  This technique is especially usefull to split big models into logical parts allowing modularisation and thus simplified file handling and maintenance.
